by Julia Garofalo | Designer / Access Planner

Assisted Listening Systems (ALS) are required to be provided in assembly areas per both the ADA and 521 CMR. These devices range in capability and technology but ultimately provide the same service to persons who are hard of hearing. There are four (4) types of systems that are typically used – Radio Frequency (RF), Infrared (IR), Induction Loop, and, in more recent years, Wi-Fi.

The terminology required to understand ALS can be overwhelming. To more readily grasp these requirements, basic definitions are provided below.

Receiver – a device typically worn around the neck that amplifies sound from a speaker

Telecoil or T-Coil – a wireless receiver built-in to some hearing aids; amplifies sound from facilities utilizing Induction Loop technology

Hearing Aid – a personal device worn either in the ear or behind the ear that amplifies sound; can have a “T” switch to toggle the T-Coil on/off.

Radio Frequency (RF) Transmitter – utilizes radio channels to transfer sound to a receiver

Infrared (IR) Transmitter – utilizes infrared technology to transfer sound to a receiver

Induction Loop – a sound system installed in facilities through a loop of wire that creates an electromagnetic field that communicates with “T” switch compatible hearing aids and receivers

Wi-Fi Transmitter – a wireless access point communicates with an individual’s smartphone app to amplify sound

The ADA requires a minimum number of receivers based on the total number of seating with an additional set of receivers that are hearing-aid compatible (see Figure 1). In the state of Massachusetts, the requirements are more stringent. MAAB §14.5 requires the minimum number of receivers provided to be 4% of the total number of seats, but no less than two (2) receivers [1]. To compare, an assembly area with a total of 2001 seats requires 70 receivers under the ADA versus 80 under MAAB.

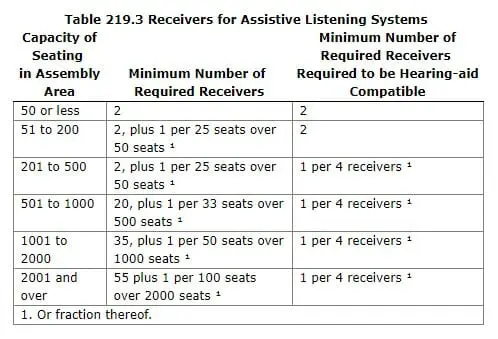

Table 219.3 Receivers for Assistive Listening Systems from 2010 ADA StandardsFigure 1. ALS requirements from ADA §219.3 [2]

I attended a seminar offered by Acentech, an acoustical consulting firm based in Cambridge, MA, where the presenters explained the each of the ALS systems in detail. There are several pros and cons to consider for each system type, ranging from cost to interference. The table below gives a side-by-side comparison for each system:



Pros

Cons

RF
  • 17 channels available
  • Easy portable or fixed installation
  • Lowest installation cost
  • Large coverage area indoors or outdoors
  • Excellent sound quality
  • T-Coil hearing aid compatible
  • Transmission not private
  • Possible radio interference
  • Limited to 8 simultaneous channels
  • Listeners need a receiver
  • Some receiver management needed
IR
  • Secure transmission within confined room
  • Excellent sound quality
  • Not as susceptible to interference
  • Multiple rooms with no interference
  • No license requirement
  • T-Coil hearing aid compatible
  • 4 channels can be used
  • IR emitters cannot be concealed
  • Emitters need to be placed properly for optimum coverage
  • More emitters needed for larger areas
  • Most IRs have issues with direct sunlight
  • Listeners need a receiver and be in line of sight with emitter
  • Some receiver management needed
Loop
  • T-Coil hearing aids do not need receiver
  • Management of receivers minimized
  • No license required
  • Hearing aid tuned to compensate for specific hearing loss
  • Transmission not private
  • Single channel only
  • Not all potential users have T-coil hearing aids
  • Installation and repairs can be difficult and costly
  • Susceptible to interference from other electrical equipment
Wi-Fi
  • Works off existing Wi-Fi systems
  • Free phone app
  • No device management
  • Dependent on end user to bring device or download the app
  • Latency of old vs. new phone models

Figure 2. Data taken from Acentech presentation [3]

One of the most interesting takeaways from the ALS seminar was that the baby boomers seemingly do not associate themselves with the ADA. In other words, it seemed as if they didn’t correlate their hearing impairments as a disability but rather a natural cycle of aging. To be fair, hearing loss is common in the aging community, however, it was intriguing to witness this disconnect. Many in the audience joked at the irony of requiring so many hearing devices in a space where no one uses them. Another common joke was that Americans tend to hide their flaws/disabilities from the rest of the world. Take eyewear for example – the impairment of vision has become a symbol of fashion or presumed intelligence. Hearing aids, however, haven’t achieved that cachet just yet. They are widely associated with the elderly, regardless of the multitudes of children and young people who use them as well.

Sources:

[1] Mass.gov, 521 CMR 14: Places of Assembly, Section 14.5, https://www.mass.gov/regulations/521-CMR-14-places-of-assembly-0

[2] United States Access Board, Chapter 2: Scoping Requirements, Section 219, https://www.access-board.gov/guidelines-and-standards/buildings-and-sites/about-the-ada-standards/ada-standards/chapter-2-scoping-requirements#219%20Assistive%20Listening%20Systems

[3] Acentech, https://www.acentech.com/
